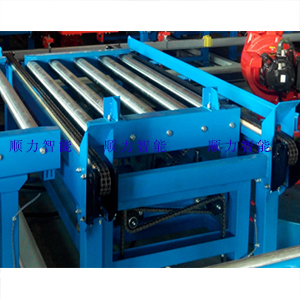

Three dimensional carrier
Product introduction
The utility model relates to a carrier removing machine, which is used for automatically conveying goods in an automatic warehouse, and has chain type, roller type, belt type and the like. The carrier is composed of a jacking mechanism and a conveying mechanism, and the two parts are respectively provided with an independent power assembly and a machine body, and the two parts are connected by connecting rods or linear bearings. The carrier carries the cargo units that are delivered to them, top off the original conveyor line, and then cross conveyor.
Product characteristics
1) cross freight units;
2) and roller, chain conveyor line supporting the use of;
产品性能
Serial number | project | Description |
1 | Main material | Q235 |
2 | Number of handling units |
|
3 | Handling unit size | Standard pallet 1200*800/1000mm, material box 600*400 or made as required |
4 | Cargo unit weight | 10 ~ 2000kg or as required |
5 | Conveying speed | 12m/min, optional frequency conversion speed regulation |
6 | Conveying mode | Chains, rollers, belts, rollers |
7 | positioning accuracy | ±5mm |
8 | Communication mode | Wired |
9 | control mode | Manual, semi-automatic, online, fully automatic |
10 | supply voltage | Domestic standard industrial frequency power consumption, 3 phase, 380V, 50Hz |
11 | Power supply mode | Cable |
