Roller line
Product introduction

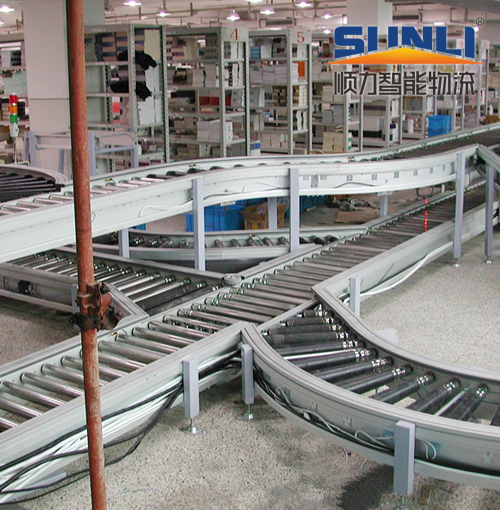

Roller line is a kind of conveyor line. Its structure is mainly composed of a machine body, roller, powertrain, driving mode can adopt chain, multi wedge belt and O belt, friction drive, also can do no power roller line, depending on the gravity of goods in the roller sliding line. The roller line drives the cargo unit forward by the rotation of the roller, and is used in the automatic stereoscopic warehouse to transport goods and buffer goods.
Product characteristics
1) roller conveyor, small noise, smooth transmission;
2) the body is made of steel or aluminum;
3) drum installed electric eye line, bar code scanner and other electrical equipment auxiliary work;
4) roller line can be transported straight or turn.
Product performance
Serial number | Item | Description |
1 | Main material | Q235，Aluminum profile |
2 | Number of handling units | A line carries one unit at a time, and the discharge line can be more than one unit |
3 | Handling unit size | Standard pallet 1200*800/1000mm, material box 600*400 or made as required |
4 | Cargo unit weight | 10 ~ 2000kg or as required |
5 | Conveying speed | 12m/min, optional frequency conversion speed regulation |
6 | Conveying mode | Rollers include ordinary straight rollers, drum, cone and so on |
7 | roller diameter | φ32mm, φ50mm, φ60mm, φ76mm, φ89mm, |
8 | positioning accuracy | ±5mm |
9 | Communication mode |
|
10 | control mode | Manual, semi-automatic, online, fully automatic |
11 | supply voltage | Domestic standard industrial frequency power consumption, 3 phase, 380V, 50Hz |
12 | Power supply mode | Cable |
